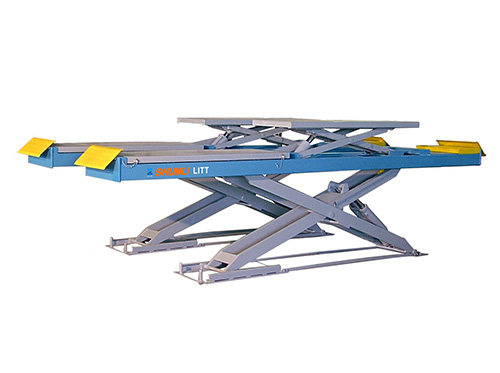

CD3535TC Ultrathin Double Level Scissor Lif for Four Wheel Alignment

    Double level scissor lift, 140mm above the ground at the lowest level

    ◆ Adopt Italy technology to design

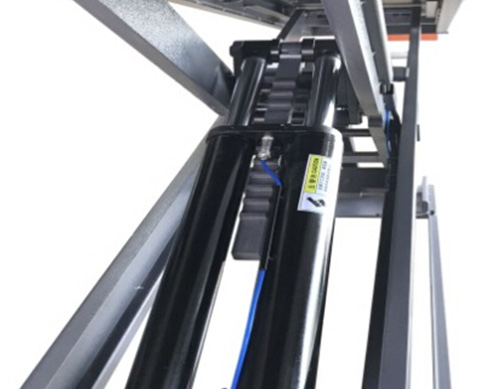

    ◆ 6cylinders, double hydraulic balance system（main lift）and mechanical safety with automatic unlock are equipped

    ◆ 24V safety control circuit

    ◆ 8 cylinders, double hydraulic balance system（main lift）and mechanical safety with automatic unlock are equipped

    ◆ Components are made by laser cutting machine or other CNC equipment

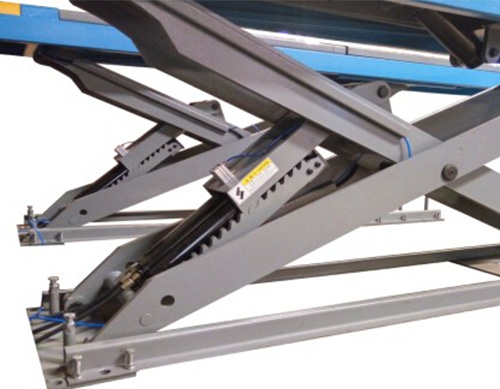

    ◆ Alloy solid steel X structure, good rust resistance and not easy to deformation


Product Features

Double level scissor lift, 140mm above the ground at the lowest level

· Adopt Italy technology to design

· 6cylinders, double hydraulic balance system（main lift）and mechanical safety with automatic unlock are equipped

· 24V safety control circuit

· Laser cutting whole-plate platforms, more accurate and stronger

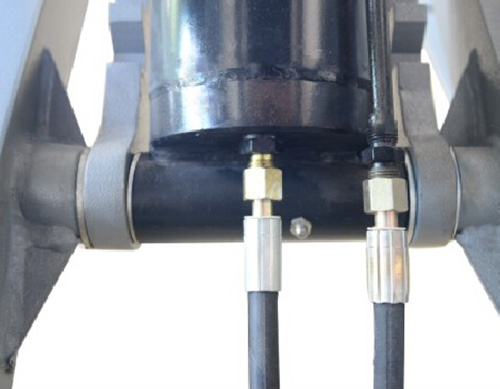

· Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity·Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe

· Components are made by laser cutting machine or other CNC equipment.

· Alloy solid steel X structure, good rust resistance and not easy to deformation

· Shot blasting and high temperature baking powder coated surface finish

·Second-level extensible platform

· Wear-resisting bearings, polymer wear-resistance slider

· Infra-red electronic leveling sensor, anti presser foot device

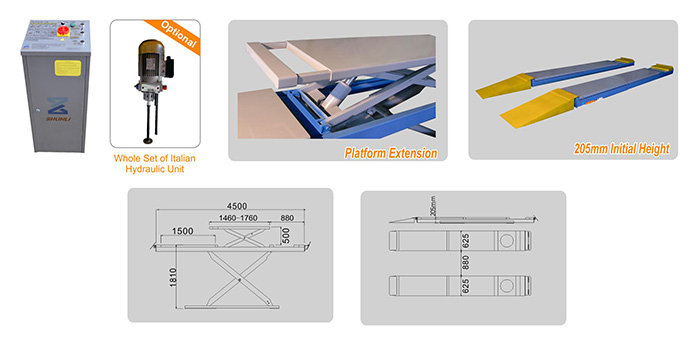

ModelCD3532TC
FOB Guangzhou price3980.00USD
Capacity of Main Lift3500kgMain lift Platform Width625mm
Capacity of Sub-lift3200KGSub-lift Platform Length1460-1760mm
Main Lift Lifting Height1810mmSub-lift Platform Width565mm
Sub-lift Lifting Height500mmMotor380v/220v
Main lift Platform Length4500mmAir Pressure0.4-0.6mpa
Initial Height205mmPower3kw

CD3535TC Ultrathin Double Level Scissor Lif for Four Wheel Alignment

CD3535TC Ultrathin Double Level Scissor Lif for Four Wheel Alignment

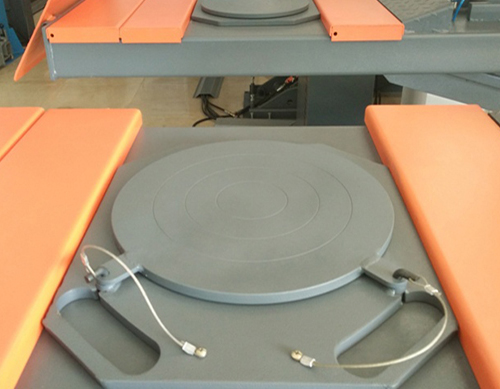

The Turntables
The Turntables

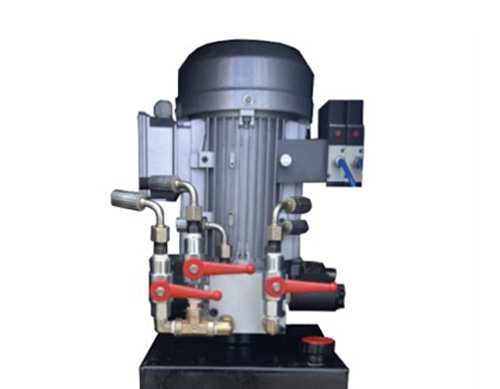

The Italian Valve
The Italian Valve
The Control Box
The Control Box

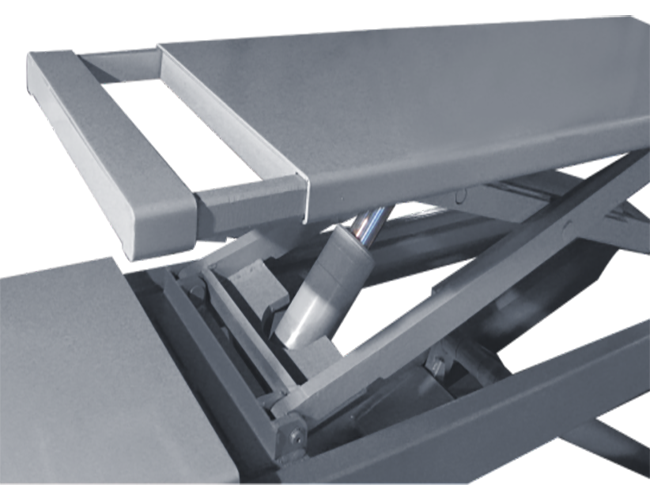

Platform Extension
Platform Extension
CD3535TC Ultrathin Double Level Scissor Lif for Four Wheel Alignment
